Product Code: 3259788

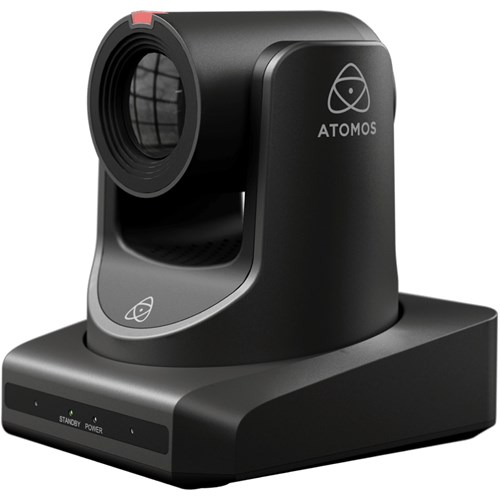

The Atomos A-Eye HD-20X PTZ Camera is an AI-enhanced PTZ camera with intelligent tracking, high-quality video, and easy connectivity. It features a 1/2.8-inch HD CMOS sensor, 2.07MP resolution, and 20x optical zoom for sharp, detailed imaging. Its AI-powered tracking and wide PTZ motion (+/-170° pan, -30° to +90° tilt) provide smooth subject tracking, making it suitable for use in education, worship, and budget-conscious production setups.
Atomos A-Eye HD-20X - PTZ Camera Key Features:
- AI-enhanced auto-tracking HD PTZ camera
- 1/2.8-inch HD CMOS sensor for high-quality imaging
- 2.07 megapixels of effective resolution
- 20x optical zoom for sharp, detailed close-ups
- AI-powered subject tracking with real-time responsiveness
- +/-170° pan range for wide horizontal coverage
- -30° to +90° tilt range for flexible vertical framing
- Designed for fixed installations in education and worship settings
- Compact design suited to space-limited environments
- Supports remote operation without a dedicated camera operator
- Suitable for professional multi-camera production setups
What's in the box?
- 1 x Atomos A-Eye HD-20X - PTZ Camera
- 1 x RS-232 Serial Cable (2m)
- 1 x USB 3.0 A-A cable (1.5m)
- 1 x Lens Cover
- 1 x Remote Controller
- 1 x Accessory Tray
- 1 x Wall Mount Rack
- 1 x Screw Pack
- 1 x Power Adaptor With 4 Plugs
- 1 x Quick Start Guide
FAQs:
What operating systems and protocols does the Atomos A-Eye HD-20X - PTZ Camera support?
The Atomos A-Eye HD-20X PTZ Camera is compatible with a wide range of systems, including Windows 7, 8, and 10, Mac OS X, Linux, Android, iOS, and iPadOS. It also supports major protocols, including RTMP/RTMPS, SRT, NDI HX3, and ONVIF for streaming and integration into IP-based production environments. USB PTZ control and UVC support ensure broad device interoperability.
What video output/connectivity options are available on the Atomos A-Eye HD-20X - PTZ Camera?
The Atomos A-Eye HD-20X PTZ Camera offers HDMI, 3G-SDI, USB 2.0, and IP streaming via Ethernet, making it suitable for a range of broadcast and streaming workflows. It supports dual video streams with selectable resolutions and bit rates, allowing one stream for recording and another for preview or monitoring. This multi-output flexibility enables the camera to be integrated into both live and recorded setups.
Does the Atomos A-Eye HD-20X - PTZ Camera have built-in audio support?
The A-Eye HD-20X features a built-in dual microphone with a frequency response of 100Hz to 16KHz, making it suitable for basic voice pickup in smaller rooms. For higher-quality or external audio sources, it features both 3.5mm Line In and Line Out ports, as well as audio over HDMI and USB. Audio is compressed using AAC at up to 256Kbps for clear transmission.
Does the Atomos A-Eye HD-20X - PTZ Camera support remote control and presets?
Yes, the Atomos A-Eye HD-20X PTZ Camera supports remote PTZ control via USB, RS-232, RS-485, and IP. The unit can store up to 255 preset positions with 0.1° accuracy, enabling quick recall of framing during live production. Preset speed is also adjustable, allowing smoother transitions when switching views.
Back to topProduct Specification
| Dimensions | 139.2 x 176.5 x 165.8mm |
| Field Of View | Horizontal FOV: 60.7° ~ 3.36°, Vertical FOV: 34.1° ~ 1.89° |
| Focal Length | 4.42mm ~ 88.5mm |
| Included Accessories | RS-232 Serial Cable (2m), USB 3.0 A-A Cable (1.5m), Lens Cover, Remote Controller, Accessory Tray, Wall Mount Rack, Screw Pack, Power Adaptor With 4 Plugs, Quick Start Guide |
| Outputs | 3.5mm audio interface, RS-485: 2-pin phoenix port; max distance: 1200m; protocol: VISCA/Pelco-D/Pelco-P, RS-232 OUT: 8-pin Mini DIN; max distance: 30m; protocol: VISCA network use only, Network: 10M/100M Adaptive Ethernet Port, USB 2.0: Type A, 3G-SDI: BNC type, 800mVp-p, 75Ω. To SMPTE 424M standard, HDMI version 1.3 |
| Panning|Tilting Range | ±170°|-30° ~ +90° |
| Panning|Tilting Speed | 1.7° ~ 100°/s|1.7° ~ 69.9°/s |
| Protocol | NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast |
| Sensor | 1/2.8 inch, CMOS |
| Weight [g] | 1500.00 |
